Standard

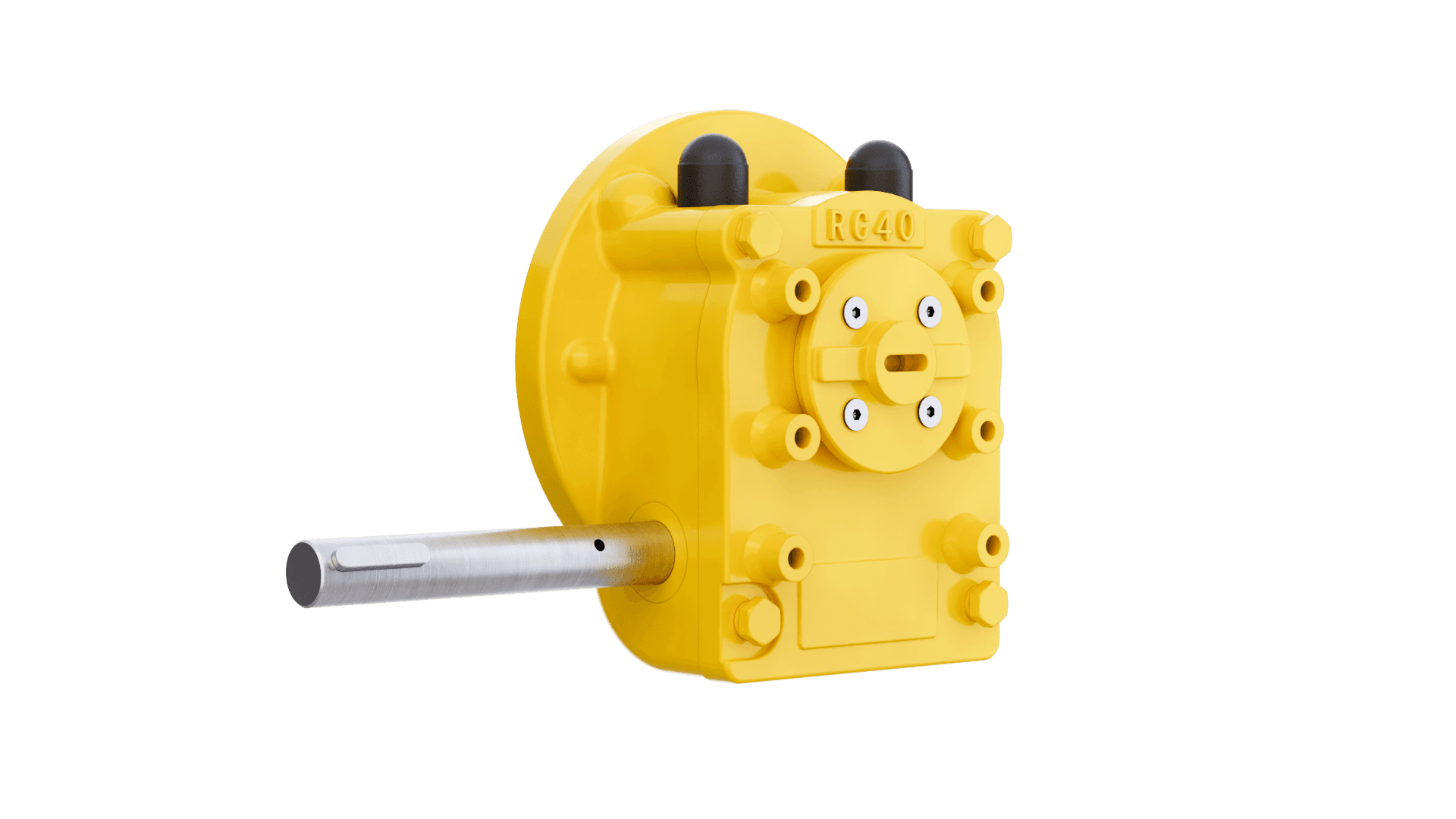

RCG-400
400 Nm output
Compact accessory-ready gearbox for everyday isolation valves.
- Max Torque
- 400 Nm
- Weight
- 8 kg
- Ratio
- 24:1
View Details
Find your Rapid Connect Gearbox details by entering your serial number
Engineered Solutions for Industry
Accessory Ready GearboxMechanical Interlock Ready. Switchbox Ready. Padlocking Ready.
Hassle-free accessory mounting is here! The Rapid Connect Gearbox redefines the manual valve gearbox. Engineered with real-world application in mind, the patent-pending top-plate design allows for the direct mounting of mechanical interlocks, position switchboxes, and padlocking brackets, all without having to remove any of the fixings or fasteners. Visit the products page to find out more and search the gearbox range.
- 3,800 Nm
- Peak torque
- ISO 5211
- Direct mounting
- Stock
- Core range availability
Product Range
Valve Gearbox Solutions
Explore our range of Rapid Connect gearboxes. Each gearbox allows quick connection of valve interlocks, position indicators and padlocking accessories.
- Standard

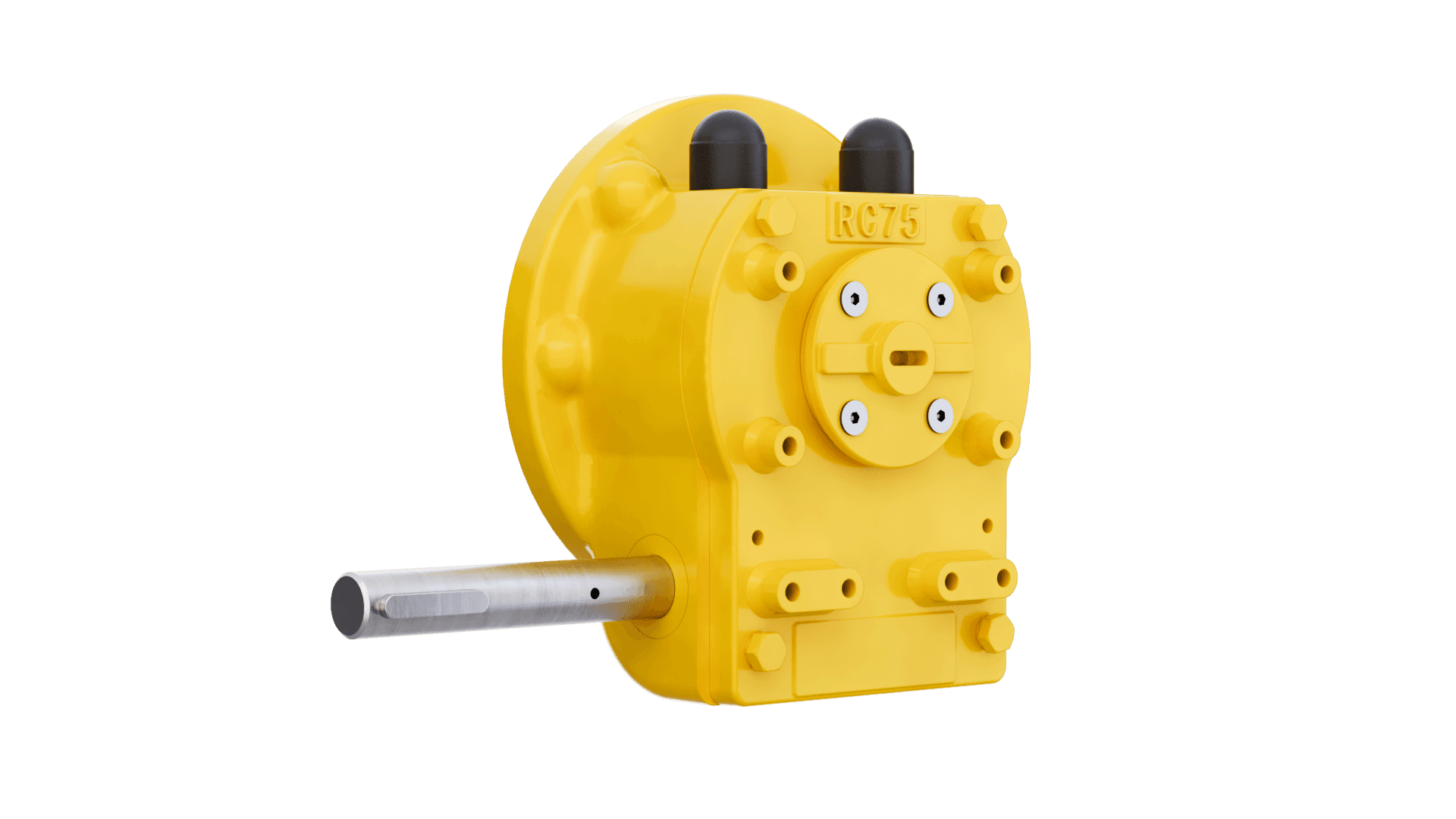

RCG-750
750 Nm output
Mid-range torque with a slim footprint for tight manifolds.
- Max Torque
- 750 Nm
- Weight
- 12 kg
- Ratio
- 36:1
View Details - Heavy Duty

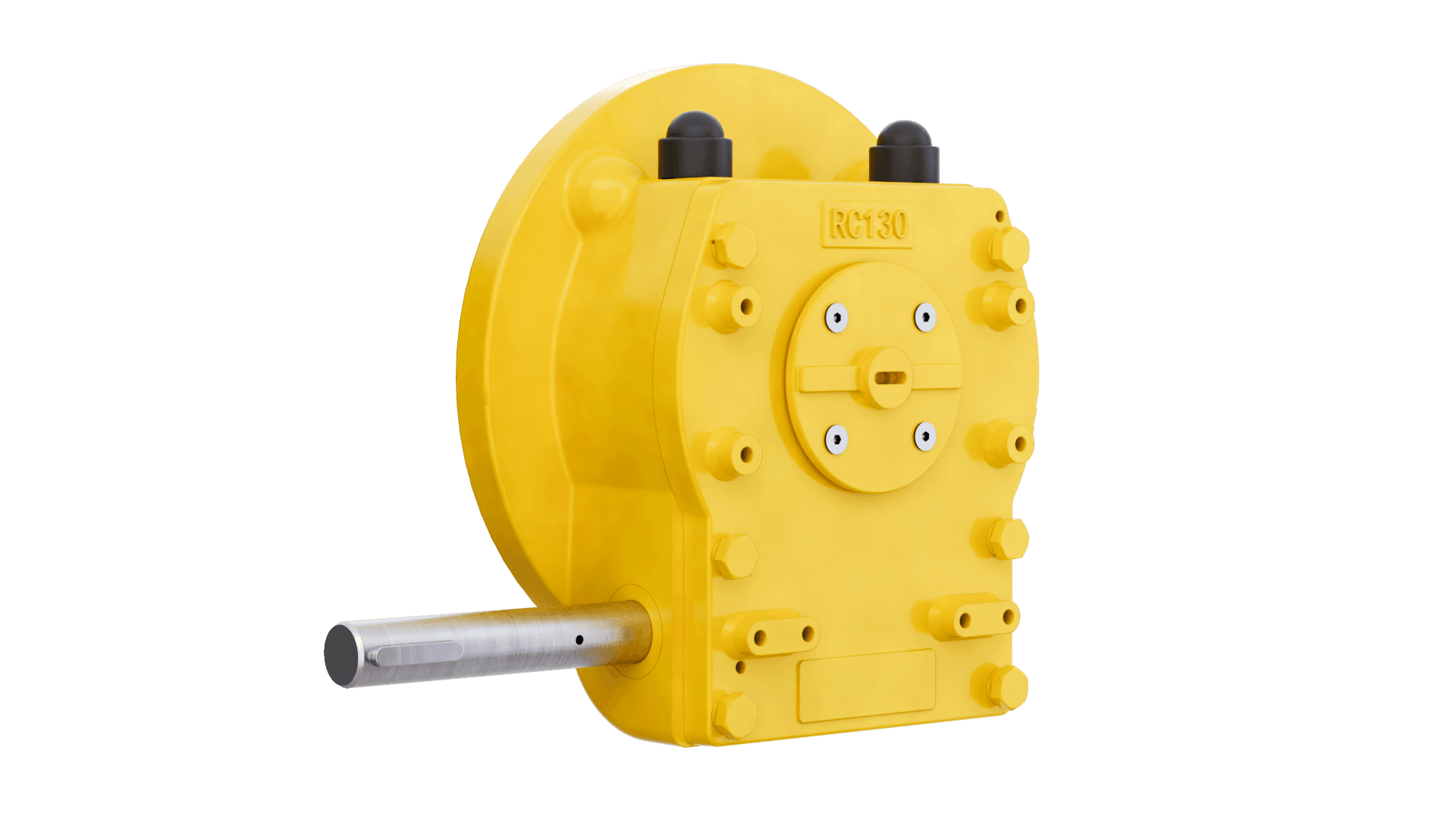

RCG-1300 Heavy Duty
1300 Nm output
Heavy-duty torque for demanding process isolation.
- Max Torque
- 1300 Nm
- Weight
- 20 kg
- Ratio
- 41:1
View Details - Heavy Duty

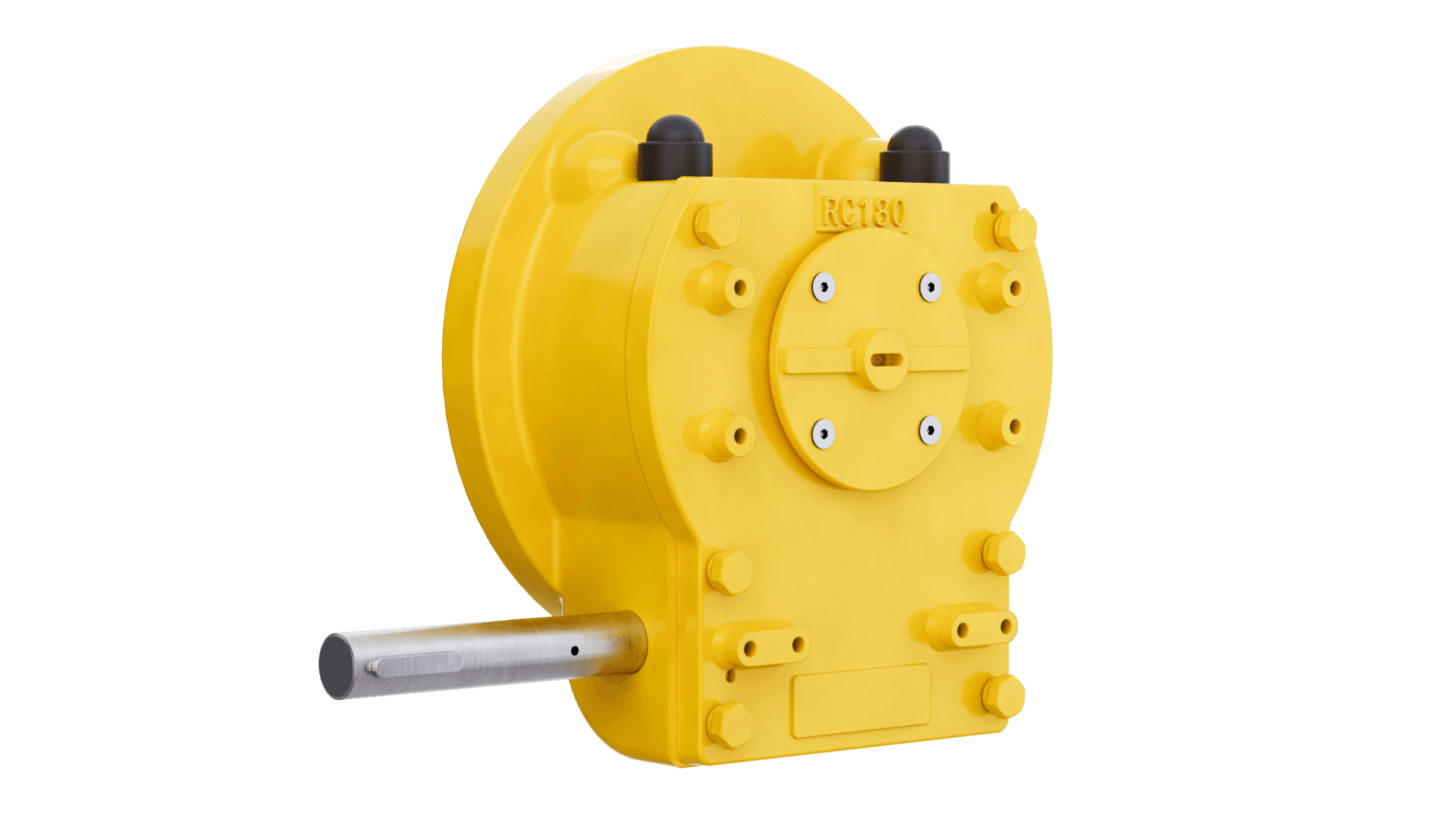

RCG-1800 Heavy Duty
1800 Nm output
High-torque control for large-bore pipeline valves.
- Max Torque
- 1800 Nm
- Weight
- 26 kg
- Ratio
- 47:1
View Details - Heavy Duty

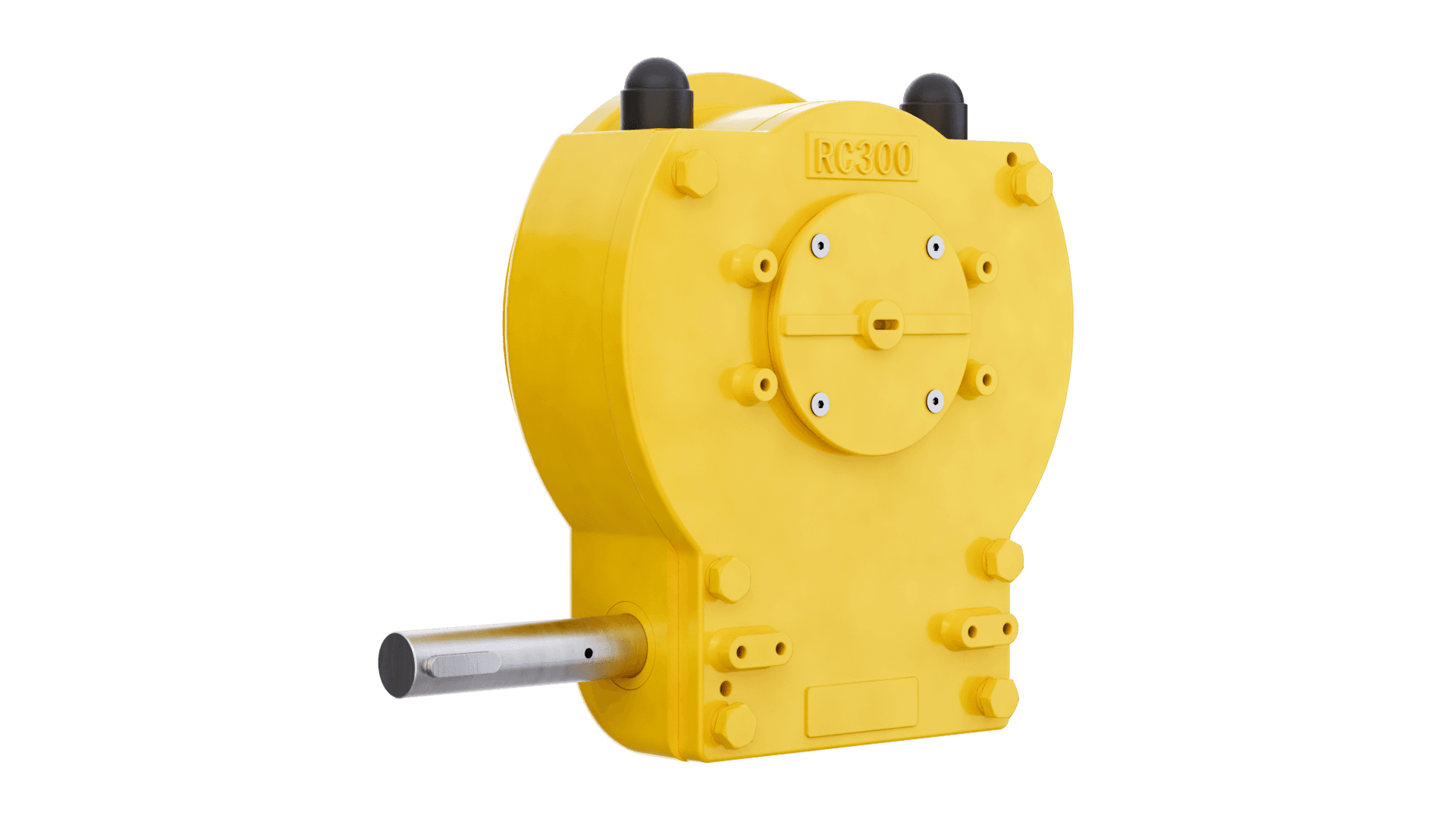

RCG-3000 Heavy Duty
3000 Nm output
Severe-service torque for the largest pipeline valves.
- Max Torque
- 3000 Nm
- Weight
- 40 kg
- Ratio
- 68:1
View Details - Heavy Duty

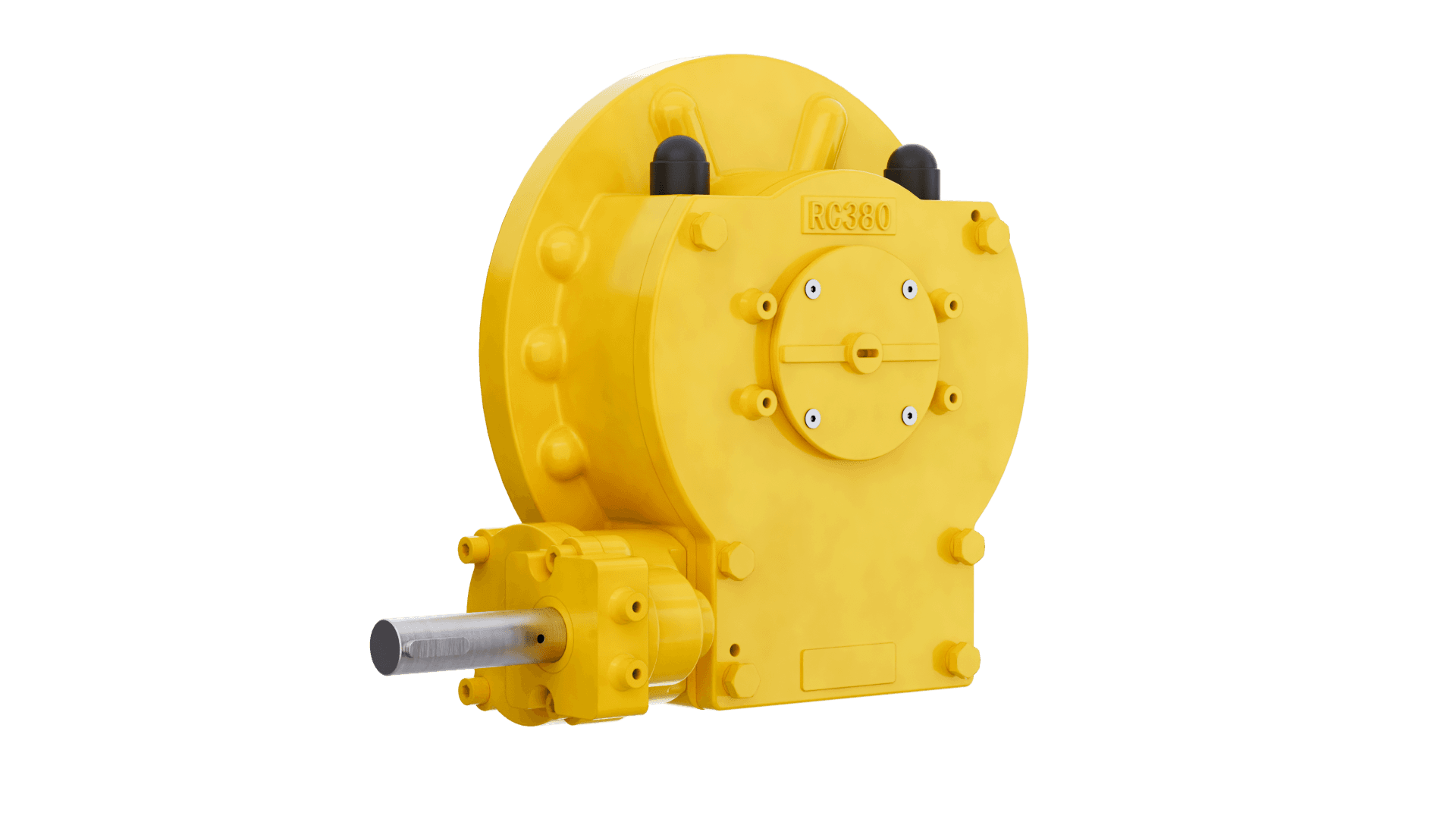

RCG-3800 Heavy Duty
3800 Nm output
Flagship torque output for critical large-bore service.
- Max Torque
- 3800 Nm
- Weight
- 46 kg
- Ratio
- 136:1
View Details
Why Rapid Connect
Designed to take the frustration out of accessory mounting
Every gearbox in the range is designed around one idea: make it faster and simpler to specify, instrument and install.
Patent-pending Design
A single design that incorporates tapped holes to facilitate the direct mounting of accessories — no gearbox adaptions, no removing of fasteners, no hassle.
Direct Accessory Mounting
Quickly mount accessories directly to the gearbox top lid without having to remove its fasteners or make alterations.
Quick Delivery
Core range held in stock and available for quick delivery from our UK depot.
Performance on Demand
IP65 rated for dust and water ingress protection. SS304 input shaft for cyclic demand in industrial environments. Precision machined components for when precision engineering is required.
Not sure which gearbox you need?
Answer four quick questions and our guided selector will match you to the right model — or talk to an engineer for a tailored recommendation.
